ID # 25210005

Kubota RTV-X1140

Call for Price

Get ready for a whole new RTV experience. Kubota RTVs have been the best-selling diesel utility vehicles in North America since 2004.* And no wonder. Each year, they set the standard for ruggedness and reliability, proving themselves ready to work day after day under all kinds of conditions. Meet the Kubota RTV-X Series, four rough-and-ready RTV’s that raise the bar on comfort, convenience, and performance. Whether you’re hauling, transporting, or plowing snow, Kubota’s RTV-X has you covered. *Power Products Marketing North American Utility Vehicle Market Reports.


Engine Horsepower: 24.8 HP

Transmission: VHT

Operator Platform: 2-4 passenger

Fuel Type: Diesel

Vehicle Type: UTV




Powerful Kubota diesel engine

The RTV X series utility vehicles are equipped with 21.6 or 24.8 HP diesel engines. These 3-cylinder workhorse engines offer unparalleled power, a smooth comfortable ride and that legendary Kubota reliability.



Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. The Advanced VHT-X offers a wide torque band and large oil coolers that boost performance and durability.


Strong high-rigidity frame

The high-rigidity steel frame isolates the occupants from noise, vibrations, and harshness. With structural strength that few in the industry can match, this durable frame can take years of punishment from heavy loads and rough terrain.


Hydraulic power steering

Responsive hydrostatic power steering gives you the control you need to tame any terrain. The steering wheel is tilt-adjustable, allowing you to set the optimum angle for your driving style.

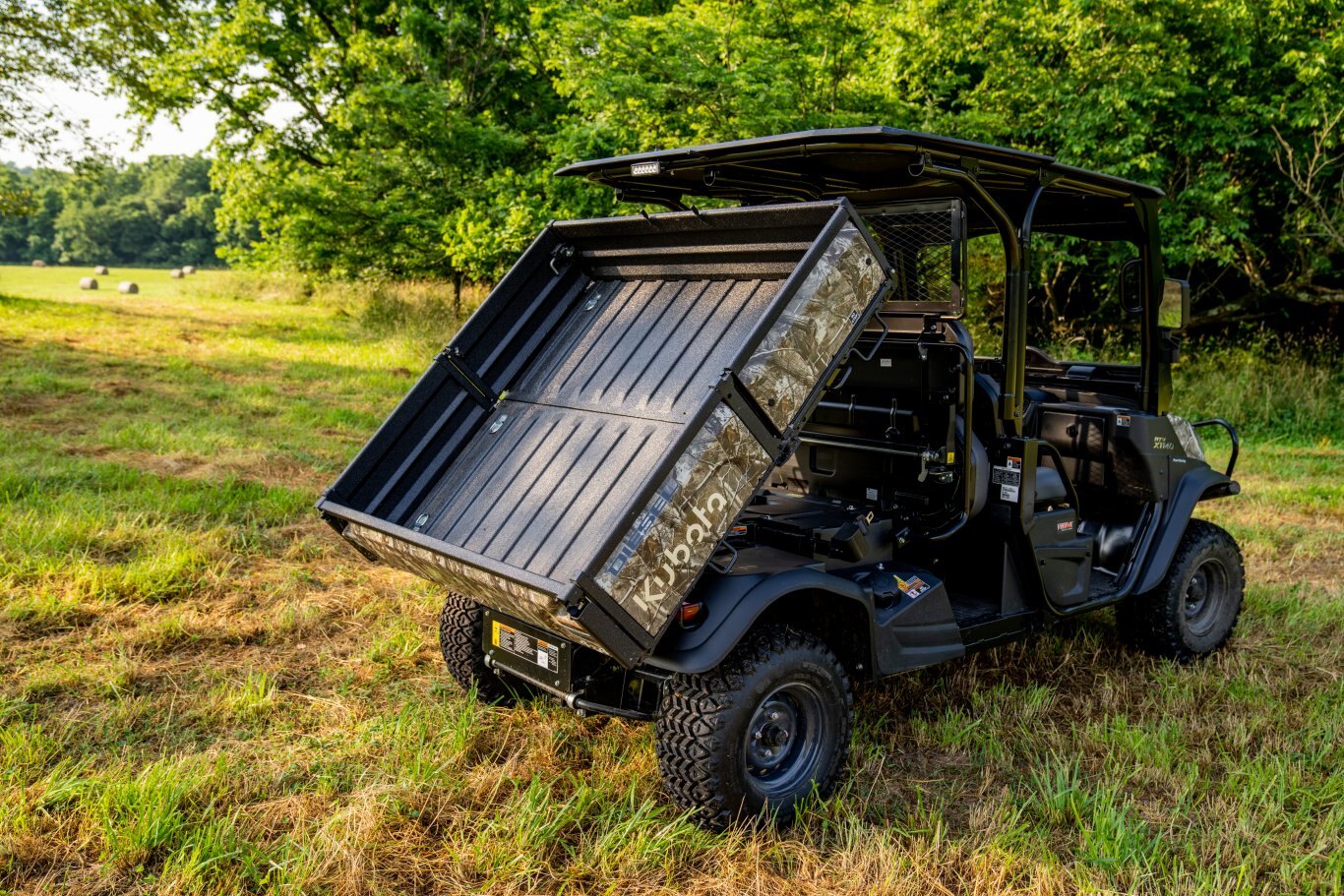

Hydraulic dumping cargo box

With the flick of a single lever, the hydraulic-lift cargo box rises and your cargo slides out. Cargo that could take significant physical strength and time to unload can now be dumped with little effort in mere seconds. Standard on most models.


Front and rear independent suspension

Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.


Model Model name RTV-X1140
  Body colour Kubota Orange
Engine Type 3-cylinders, 4-cycle, diesel, OHV
  Cooling system Liquid
  Make KUBOTA D1105-E4-UV
  Displacement 68.5 cu. in. / 1123 cc
  Engine gross power 24.8 HP / 18.5 kW
Drive train/transmission Max. traveling speed 25 mph / 40 km/h
  Differential lock - Front axle Limited-slip differential
  Differential lock - Rear axle Foot operated differential lock
  Type Variable hydro transmission (VHT-X)
  Gear selection Hi-Lo range forward, neutral, reverse
Chassis, axle and brakes Type of rear suspension Independent with coil over shock
  Steering type Hydrostatic power
  Type of front suspension Independent, Dual A-arms with adjustable spring preload
  Front suspension travel 8 in / 205 mm
  Rear suspension travel 8 in / 205 mm
Brakes Parking brake Rear wheel, hand operated
  Front Wet-disc brakes
  Rear Wet-disc brakes
Cargo box Depth 11.2 in / 285 mm
  Length 51.1 in / 1300 mm
  Width 57.7 in / 1465 mm
  Volume 19.1 cu. ft. / 0.54 m3
  Height 35.4 in / 900 mm
  Maximum payload capacity 1102 lb / 500 kg
  Material Steel
  Dumping system Hydro power lift
Dimensions and weight Overall height 79.7 in / 2025 mm
  Wheelbase 98.2 in / 2495 mm
  Weight 2370 lb / 1075 kg
  Turning radius 17.1 in / 5.2 mm
  Length 142.1 in / 3610 mm
  Width 63.2 in / 1605 mm
  Maximum towing capacity 1300 lb / 590 kg
  Maximum payload capacity 1629 lb / 739 kg
Tread centers Front 50.4 in / 1280 mm
  Rear 50.4 in / 1280 mm
Ground Clearance Front 11.2 in / 285 mm
  Rear 9.4 in / 240 mm
Electrical Battery 670 A / 670 A
  Headlights Two 37.5 Watt halogen
Turf Front 25 × 10-12, 6-ply
  Rear 25 × 10-12, 6-ply
ATV Front 25 × 10-12, 6-ply
  Rear 25 × 10-12, 6-ply
Safety equipment Seat belts 2-point
  Protective structure 2 in / 50.8 mm
  Open Station Certified SAE J2194 and OSHA 1928 ROPS
Fluid capacities Fuel tank capacity 7.9 gal / 30 l
Other Alloy wheel Opt. or Std.
  Front guard Center and bumper
  Hydraulic bed lift Std.
  Spray-on bed liner Opt.
