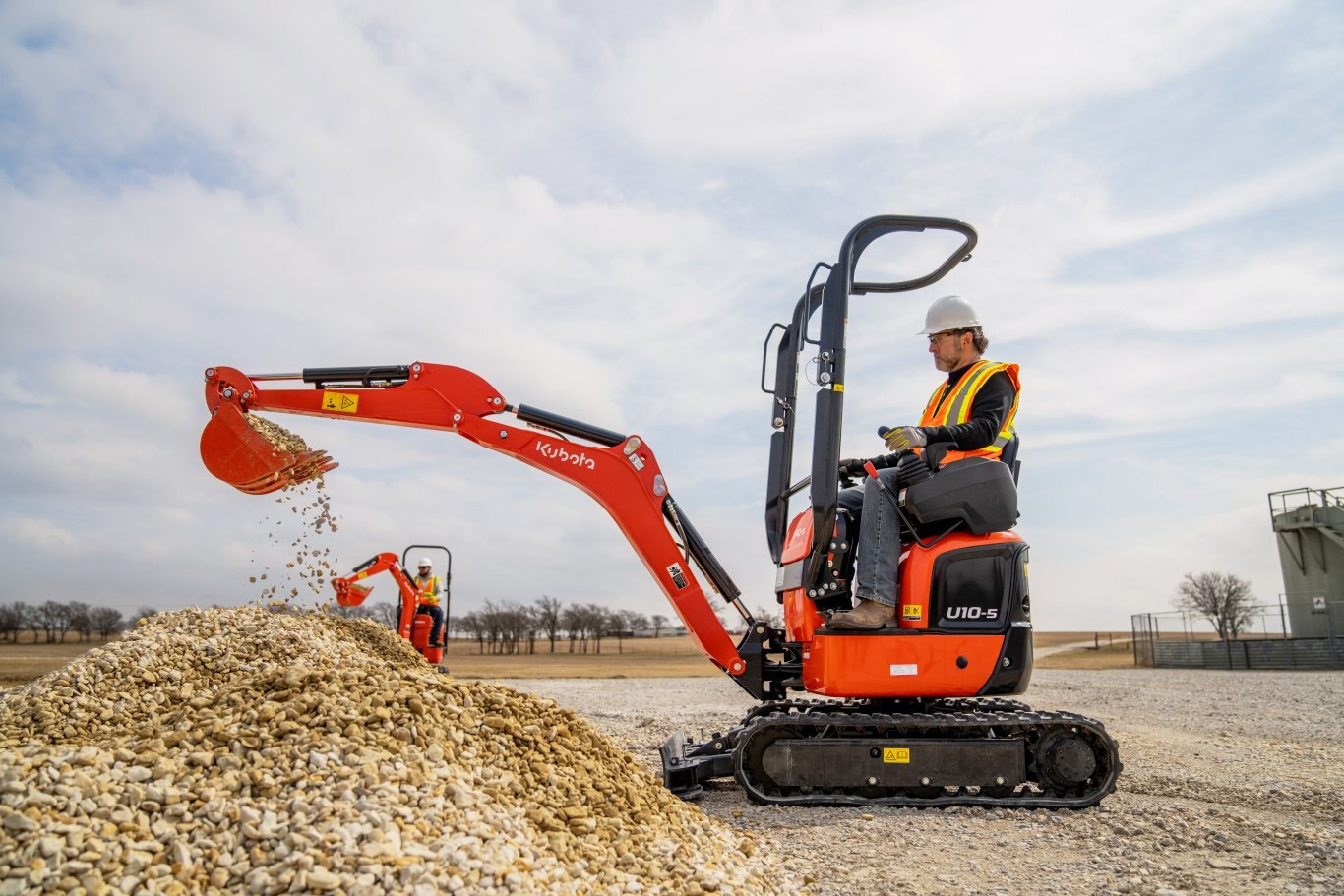

The NEW Kubota U10-5 Series 1-ton tight tail swing excavator is built to get more done in compact spaces. Power your way through areas as tight as 29” to perform challenging landscaping tasks. Plus, it can work with plenty of attachments like trenching and ditching buckets, tooth rippers, hydraulic breakers and more.
Net Horsepower: 10.3 HP
Weight: 1 ton
Dig Depth: 5'11"
Worry-free operation in tight spaces thanks to zero tail swing design.
Features retractable tracks that can slim down to 2’6” or expand to 3’3” for better stability.
Easy and simple operation accompanies you for the tough jobs ahead.
Easily transition between excavator and backhoe patterns by shifting a lever.
Allows quick exchanges between bucket and attachments, the bucket can be reversed to allow the operator to scoop away from the excavator.
Generous leg room and a fully-padded high-back chair create a comfortable place to get things done.
|Rated engine speed||2050 rpm / 2050 rpm|
|Displacement||43.8 cu. in. / 719 cc|
|Output (SAE J1995 gross)||10.3 HP / 7.7 kW|
|Output (SAE J1349 net)||10.1 HP / 7.5 kW|
|Auxiliary hydraulic flow||Pump capacity||2.8 gpm / 10.5 l/min|
|Breakout force||Bucket||2337 lbf / 1060 kgf|
|Arm||1214 lbf / 550.6 kgf|
|Dimensions and weight||Ground clearance||5.5 in / 140 mm|
|Overall height||90 in / 2260 mm|
|Overall length||117 in / 2980 mm|
|Blade||Width||39 in / 990 mm|
|Height||7.9 in / 200 mm|
|Maximum lift above ground||8.5 in / 215 mm|
|Maximum drop below ground||7.5 in / 190 mm|
|Operating weight||Including operator’s weight @ 175 lbs.||2646 lb / 1200 kg|
|Overall width||Standard||39 in / 990 mm|
|Track Guage||Standard||39 in / 990 mm|
|Drive system||Travel speed - Low||1.2 mph / 2 km/h|
|Travel speed - High||2.5 mph / 4 km/h|
|Crawler length||53 in / 1340 mm|
|Shoe width||7.1 in / 180 mm|
|Ground contact pressure||4.2 psi / 0.3 kg/cm2|
|Tumbler distance||40 in / 1010 mm|
|Swing system||Unit swing speed||8.3 rpm / 8.3 rpm|
|Boom swing angle||Left||55 deg / 55 deg|
|Right||55 deg / 55 deg|
|Fluid capacities||Hydraulic Oil Reservoir||3.3 gal / 12.6 l|
|Hydraulic Oil System||4.5 gal / 17.1 l|
|Fuel Reservoir||3.2 gal / 12 l|
|ROPS / FOPS||Type||Canopy|
