ID # 25099403

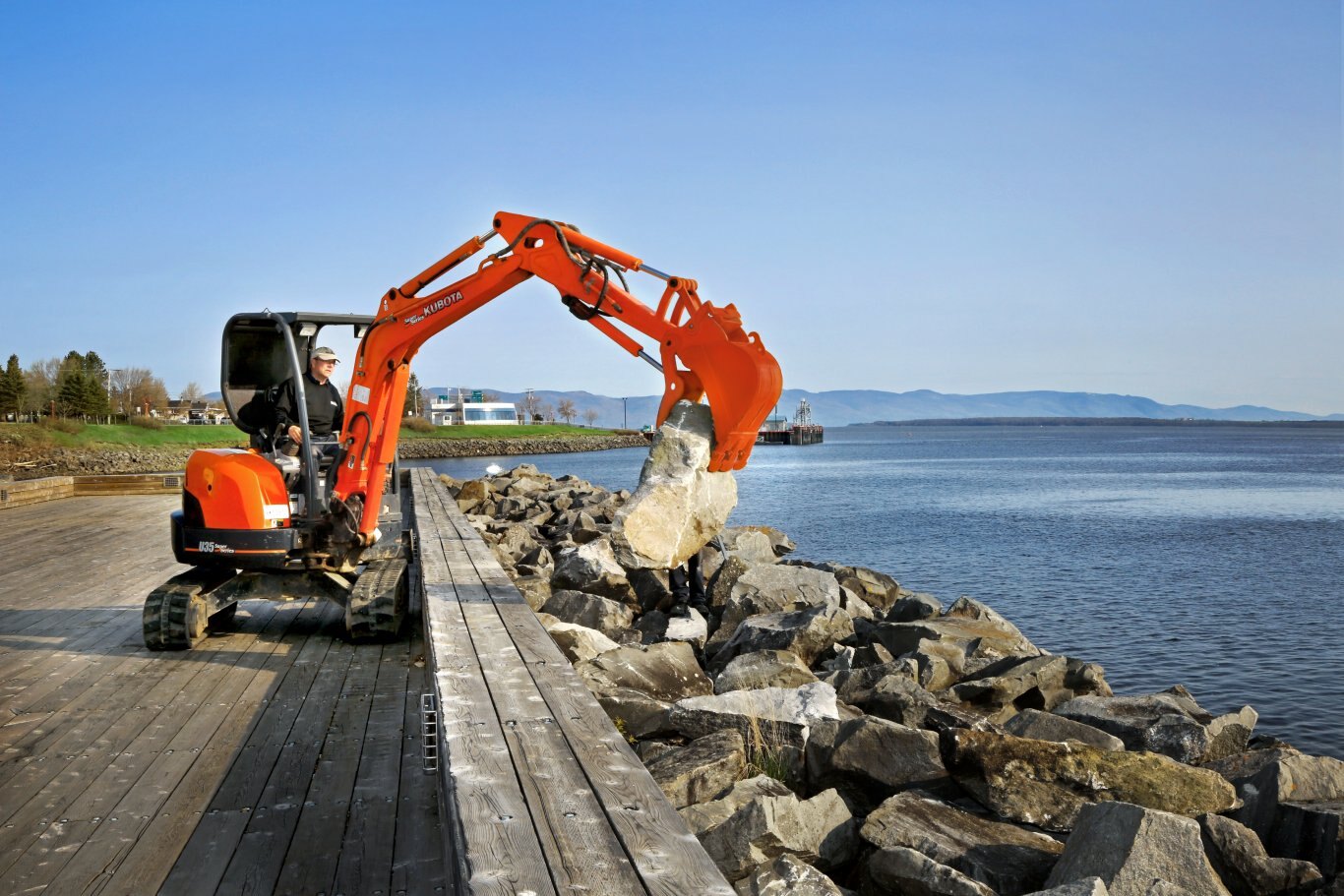

Kubota U35-4

Call for Price

With an all-new 3 tonne class cab, the Kubota U35-4 is a class leading, tight tail swing mini-excavator offering more room than ever before. Powered by a reliable Kubota 24.8 HP engine, the Kubota U35-4 combines superior power and outstanding versatility to tackle a wide variety of jobs and conditions.


Engine Horsepower: 23.9 HP

Weight: 3.5 ton

Dig Depth: 9'9"

Operator Platform: Canopy/Cab




Tight tail swing

With its counterweight protruding a mere 1.9 inches, the U35-4's tight tail swing proves to be highly versatile when undertaking operations wherever space is confined, eliminating costly damage to the engine hood and side panels. For added safety and improved operator visibility, the engine hood is set 5 inches inside the edge of the counterweight.


Comfort & convenience

A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, digital panel with easy access, simple settings and easy-to-read indicators and alerts. An option, the cab allows for easy entry and exit, with an easy-open front slide window.


Adjustable/proportional auxiliary flow

Now you can conveniently program up to five different oil flow rates for specific attachments on the new digital control panel. No tools or manual adjustment is required. Auxiliary attachments are operated with a proportional bi-directional rocker switch, or full flow button, on the right hand control lever.


Angle blade option

Save time and work more efficiently. With a simple movement of the rocker switch on the dozer lever, the hydraulic angle blade can be angled right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.


Auto Idle

Save fuel with Kubota’s Auto Idle. Reduce engine RPM instinctively when high engine speed isn’t needed. When the control levers are in neutral for more than 4 seconds, the engine RPM automatically idles. Move any control lever and the engine RPM immediately returns. This innovative feature reduces noise and exhaust emissions while reducing operating costs.


Auxiliary diverter valve

The standard diverter valve on the auxiliary circuit allows a second hydraulic attachment to be connected and the oil flow switched to the second attachment, with no need to disconnect the main attachment.


Clean running Kubota Tier 4 engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.


Blade float

The float function is a standard feature on the U35-4*. Ground finishing work can be completed quickly and simply without the need to adjust the blade height. After backfilling, simply travel backwards along the covered ditch with the dozer in the float position. *Standard on both angle blade & standard blade models.



Model Model name U35-4
Engine Model D1703M-DI-E4
  Make Kubota
  Rated engine speed 2200 rpm / 2200 rpm
  Displacement 100.5 cu. in. / 1647 cc
  Output (SAE J1995 gross) 24.8 HP / 18.5 kW
  Output (SAE J1349 net) 23.9 HP / 17.8 kW
Hydraulic system
Auxiliary Hydraulic Flow Pump capacity 10.5 gpm / 39.6 l/min
Breakout force Bucket 7924 lbf / 3594 kgf
  Arm 4451 lbf / 2019 kgf
Dimensions and weight Ground clearance 11.34 in / 288 mm
  Overall height 97.2 in / 2470 mm
  Overall length 187 in / 4749 mm
  Overall width 66.9 in / 1700 mm
Blade Width 69.6 in / 1700 mm
  Height 13.5 in / 343 mm
  Maximum lift above ground 14.65 in / 372 mm
  Maximum drop below ground 14.53 in / 369 mm
Operating weight Including operator’s weight @ 175 lbs. 8129 lb / 3687 kg
Tracks Type Rubber/Steel
Drive system Travel Speed - Low 1.9 mph / 3 km/h
  Travel Speed - High 2.9 mph / 4.6 km/h
  Maximum traction force 6091 lbf / 2763 kgf
  Crawler length 82 in / 2084 mm
  Shoe width 11.8 in / 300 mm
  Ground contact pressure 4.89 psi / 0.34 kg/cm2
  Tumbler distance 66.5 in / 1688 mm
Swing system Unit swing speed 8.9 rpm / 8.9 rpm
Boom swing angle Left 71 deg / 71 deg
  Right 45 deg / 45 deg
Fluid capacities Hydraulic Oil Reservoir 11.8 gal / 44.6 l
  Hydraulic System 16.1 gal / 61 l
Fuel Reservoir 12.4 gal / 46.9 l
ROPS / FOPS Type Canopy/Cab
